Introduction: The Problem of Voice Isolation

As online interactions continue to expand across personal, professional, and social spaces, the need for reliable techniques to extract clean voice signals from noisy input streams has become increasingly popular. In the past few decades, Deep Learning-based approaches have gained particular traction, yielding ever more sophisticated and successful methods for isolating and enhancing human vocal signals in complex acoustic environments.

More specifically, given an audio signal that has some background noise and/or disturbances, can we remove the noise without affecting the quality of the underlying signal? For instance, consider the example below- can a model remove random Gaussian noise? Our research develops a novel approach to this problem. We publish our code at: https://github.com/MarcusBluestone/Voice_Isolation

Thesis: We propose and test a new model architecture CLUNet that combines Contrastive Loss-based methods with Denoising Autoencoder-based methods to generate higher quality reconstructions. We show that by combining the encodings learned via traditional denoising autoencoders and via contrastive loss, the training procedure is more stable and the reconstructed signals achieve a lower error than without it.

Let’s unpack what this means.

Background: Formalization of Voice Isolation

But what types of data are we even dealing with here?

Background: What is Sound?

Humans and computers handle sound very differently.

Physical Sound

What humans perceive as sound is simply a physical vibration through the air – the pushing and pulling of air molecules. See figure below. When we hear a sound, we do not actually hear the frequency or amplitude directly, but rather perceive certain qualities of the sound, such as loudness, pitch, and timbre. And yet, the task of voice isolation is generally quite easy for humans to perform. [4]

Digital Waveforms

Computers, on the other hand, require sound to be discretized in some fashion, and so the continuous pressure waveforms are converted into numbers by sampling the air pressure at very small time intervals. The frequency at which we sample is called the sample rate.

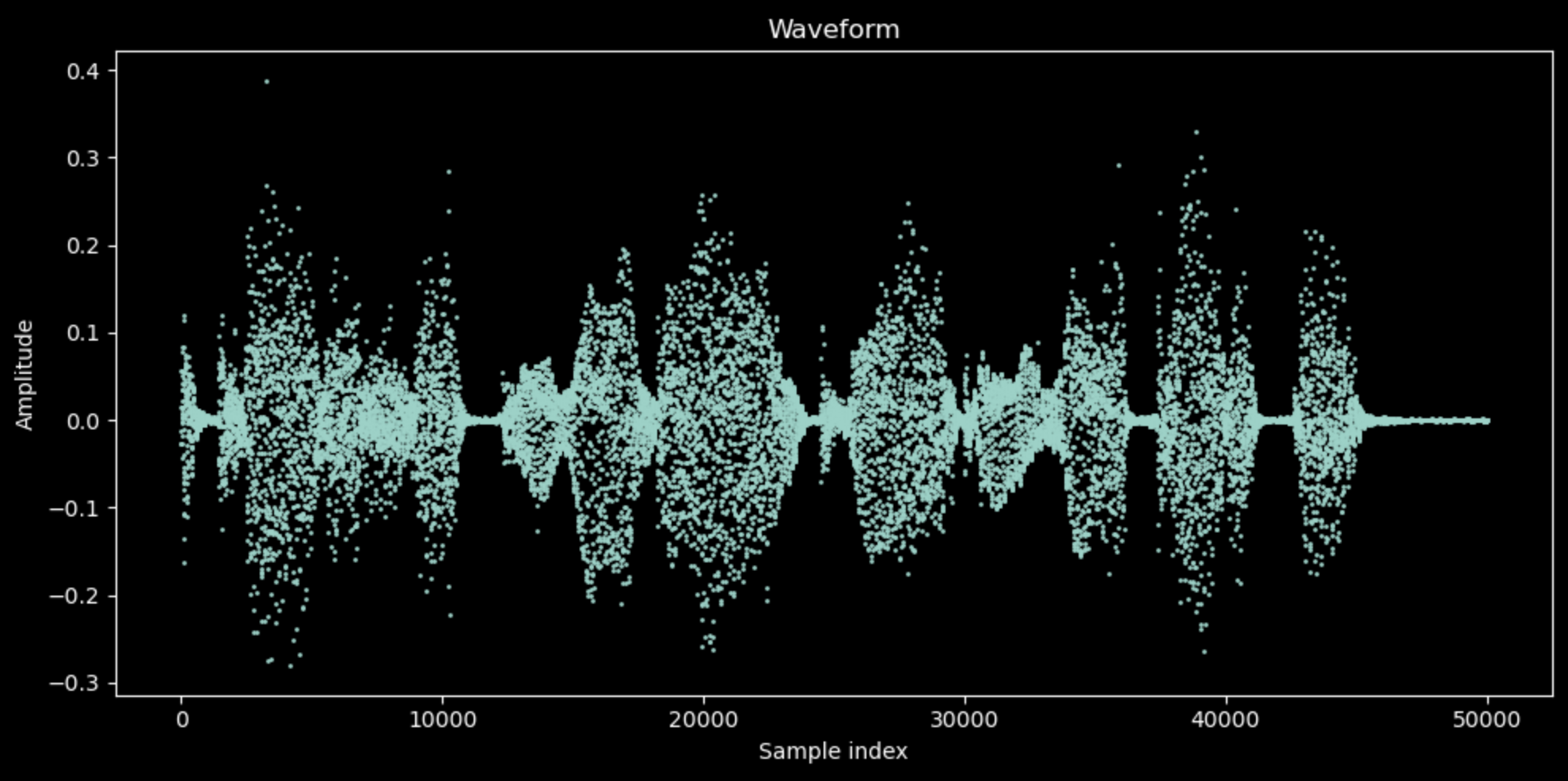

The sampled data is called a digitized waveform . Historically, waveforms were rarely used directly for voice-isolation or speech-processing tasks. Their raw form is highly detailed, noisy, and difficult to interpret using traditional signal-processing or statistical models. Only within the past decade—enabled by advances in deep learning for time-series data—have researchers begun to successfully perform voice isolation directly from waveform inputs, using architectures capable of learning the necessary features automatically. [1],[2],[3]

Spectrograms

Beginning in the late 20th century, it became standard practice to transform speech waveforms into the time–frequency domain prior to analysis [5]. This was typically done using the short-time Fourier Transform (STFT), which produces a complex-valued spectrogram. The spectrogram may then be decomposed into its magnitude and phase components. In a spectrogram representation, the x-axis denotes time, the y-axis denotes frequency, and each point in the 2D plane encodes the magnitude or phase of the signal at that time–frequency location [6]. Despite the emergence of end-to-end deep learning models, spectrogram-based representations remain widely used today due to their stability, interpretability, and computational efficiency (note that often the log-magnitude is used for more stabilized training) [7],[8].

Past Work: A Variety of Architectures

Depending on how the data is encoded, a variety of state-of-the-art methods exist for voice isolation:

1. Denoising Convolutional Autoencoders: In this framework, a clean sample is augmented with noise and then fed through a traditional autoencoder, with the original clean signal being used as the reconstruction target. When the audio signals are represented as spectrograms, standard Convolutional-Based Autoencoder architectures have proven to be highly effective at reconstruction.

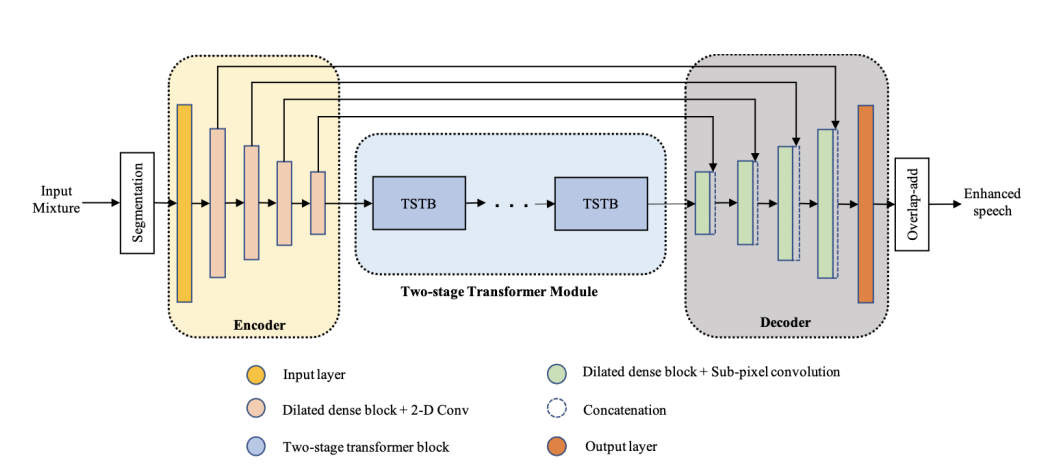

[3],[9],[10],[11],[12]. See below for an example architecture, called the CAUNet from Li et al, which is a traditional bottlenecked autoencoder with an attention layer at the bottleneck [12].



2. Time Series Models: Some approaches use a time-based architecture (such as Dual-Path RNNs [13], LSTMs [14], or Transformers [1]) that act on the waveforms directly without spectrogram intermediaries. They utilize both local and global time information to predict the noise at each time step. These approaches have achieved high success rates, but suffer from higher computational overhead due to the large size of the input waveforms and more complex model architectures.
3. Contrastive Learning for Speech Processing: Contrastive learning can enforce useful similarities and dissimilarities in embeddings to improve voice isolation performance under different realistic conditions. For example, Noise-Aware Speech Separation (NASS) uses a patch-wise contrastive learning (PCL) objective to explicitly minimize mutual information between noisy background representations and speaker embeddings [15]. In a fully unsupervised setting, frame-level contrastive learning has also been used: Ochieng treats different frames from the same speaker as “augmentations” and pulls them together in representation space, then clusters them via deep modularization, which helps separate overlapping voices without needing permutation labels [16].

   Our novel method CLUNet seeks to combine the highly successful results from convolutional denoising architectures and contrastive learning-based approaches. We avoid working with time-series data directly to avoid large computational overheads and, instead, propose new directions in the Future Works sections at the end.

Methodology: CLUNet

CL vs. DAE

To motivate why combining Contrastive Learning (CL) and Denoising Autoencoders (DAE) might produce better results, it’s important to understand the difference between the two approaches:

Contrastive learning (CL) : an unsupervised method which trains an encoder to map different views of the same signal to nearby locations in latent space, while mapping views of different signals to locations that are far apart in latent space. In our application, the “different views” correspond to different, random noise augmentations applied to the same clean signal. Note that this method only trains an encoder and doesn’t deal with reconstructing the clean signal.

Denoising Autoencoder (DAE): is a self-supervised method which trains both an encoder and decoder to recreate the original clean signal from a noisy augmented form of the signal.

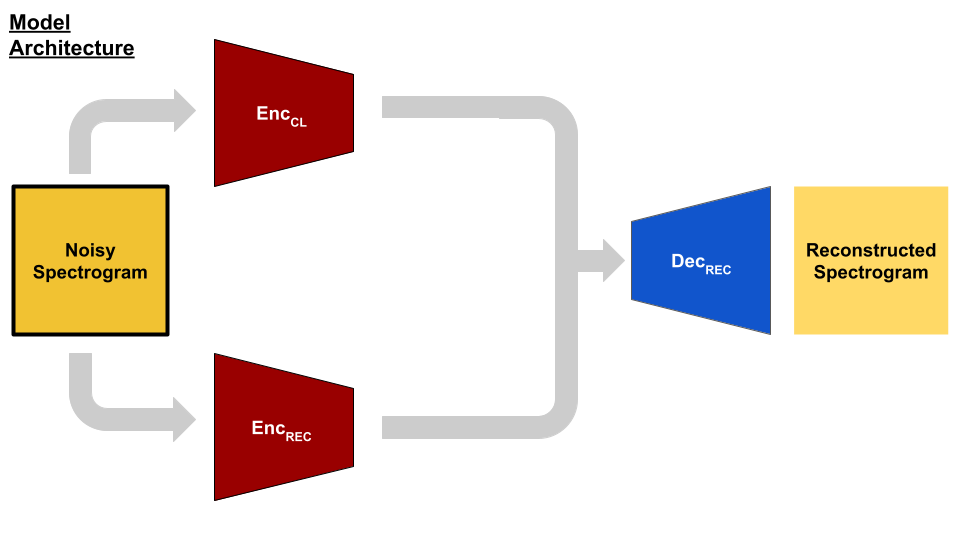

The Idea Behind CLUNet

Despite seeming very different, there is a subtle connection between the two approaches. Both approaches require understanding the underlying clean structure of the noisy inputs. In order for an Encoder trained via Contrastive Learning to map noisy views of different clean signals to locations far apart in the latent space, it must be able to – in some way – uncover or understand the underlying clean signal structure. We hypothesize that this latent space information, therefore, should also be useful in the reconstruction task required by the DAE.

Training CLUNet

Training this pipeline is not a trivial task, and we propose other options in the Future Works section. In this project, we first train \(Enc_{CL}\) solely via contrastive loss. Afterwards, we freeze that encoder, and train the \(Enc_{REC}\) - \(Dec_{REC}\) pair using traditional MSE loss with the clean signal as target.

More specifically, we have two phases for our training:

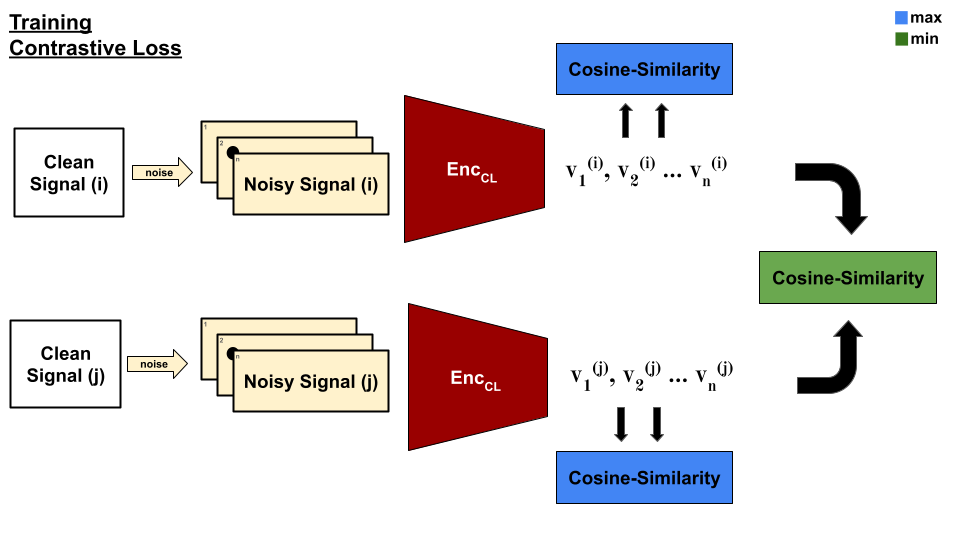

Phase 1 - CL: Sample two clean signals from our dataset; randomly augment each of them \(n\) times; apply the ST-FT to get their amplitude spectrograms; pass them through the Enc_CL; then maximize the cosine-similarity between encodings from the same clean signal and minimize the cosine-similarity between encodings from the different signals. This is done using the equivalent formulation of the InfoNCE loss objective.

Experiments & Results

Dataset

For our dataset of clean signals, we used PyTorch’s Librispeech library [17]. For training, we used the “train-clean-100” partition (~7 GB), which contains around 100 hours of clean speech from 4 different speakers. For the validation/test test, we used the “clean-dev” partition (~.7 GB), which contains 5 hours of clean speech. We randomly split the data into ~3-second intervals. The data was saved as waveforms with sample_rate = 16 kHz

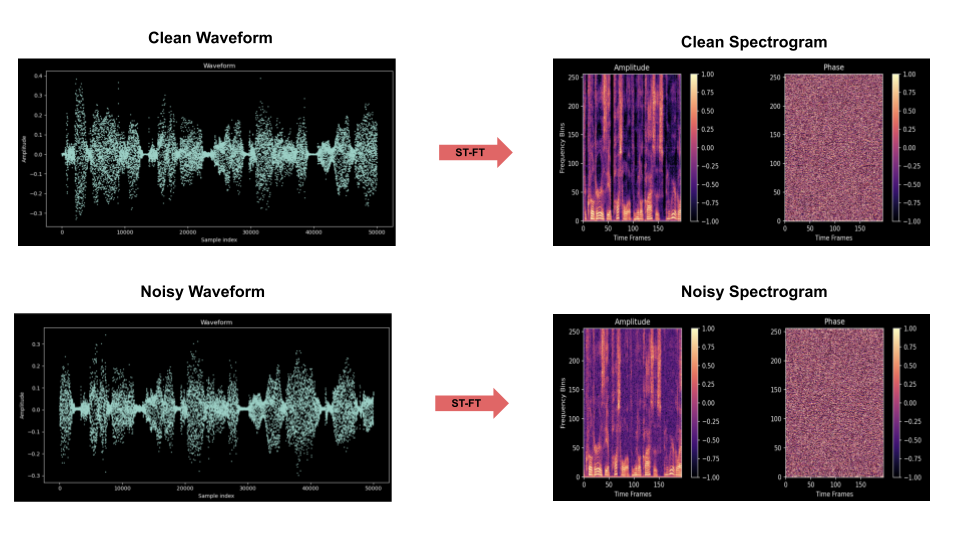

To convert the waveforms into spectrograms, we used the ST-FT using a Hann window with size 510, and hop_length = 256 [6]. These parameters were chosen such that we would get perfect reconstruction when applying the inverse ST-FT to an uncorrupted, clean spectrogram to recover the original waveform; while still producing spectrograms that are reasonably sized (256 x 198). We padded the spectrograms to size (256, 256) before feeding them into the network.

Noise Augmentations

1. Gaussian Noise: We add Gaussian noise centered at 0, with standard deviation ranging from 0.01 to 0.5.
2. Environmental Noise: We used a Kaggle dataset that contains long clips of environmental noise, such as a “river”, “hallway”, or “office meeting”. We scaled the amplitude of these clips, ranging from values 10 to 100. Note that some clips contain human dialogue, not just environmental noise, and we explicitly test with those clips as noise to see if the model is still able to differentiate between it and the original audio.

Training & Experimental Parameters

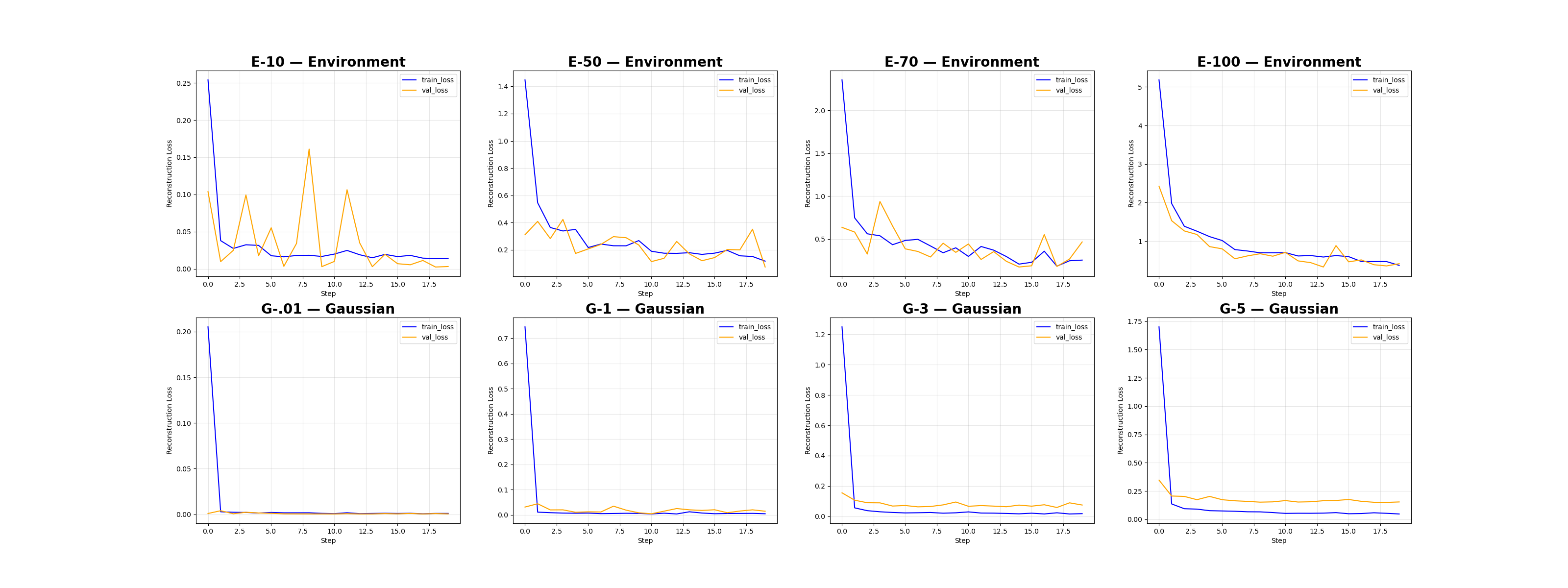

Results

1. The encoder is clearly learning, and is also converging to a stable value at the end of training
2. As we increase the amplitude of the noise (both for the environment and gaussian settings), the model does worse. This makes intuitive sense, as it becomes harder to uncover the original signal.
3. Learning in the Gaussian setting proved to be quite stable and near-instantaneous (with the final value being often near 0); while learning in the environmental setting was noisier w/ fluctuations that eventually converged to a stable value.

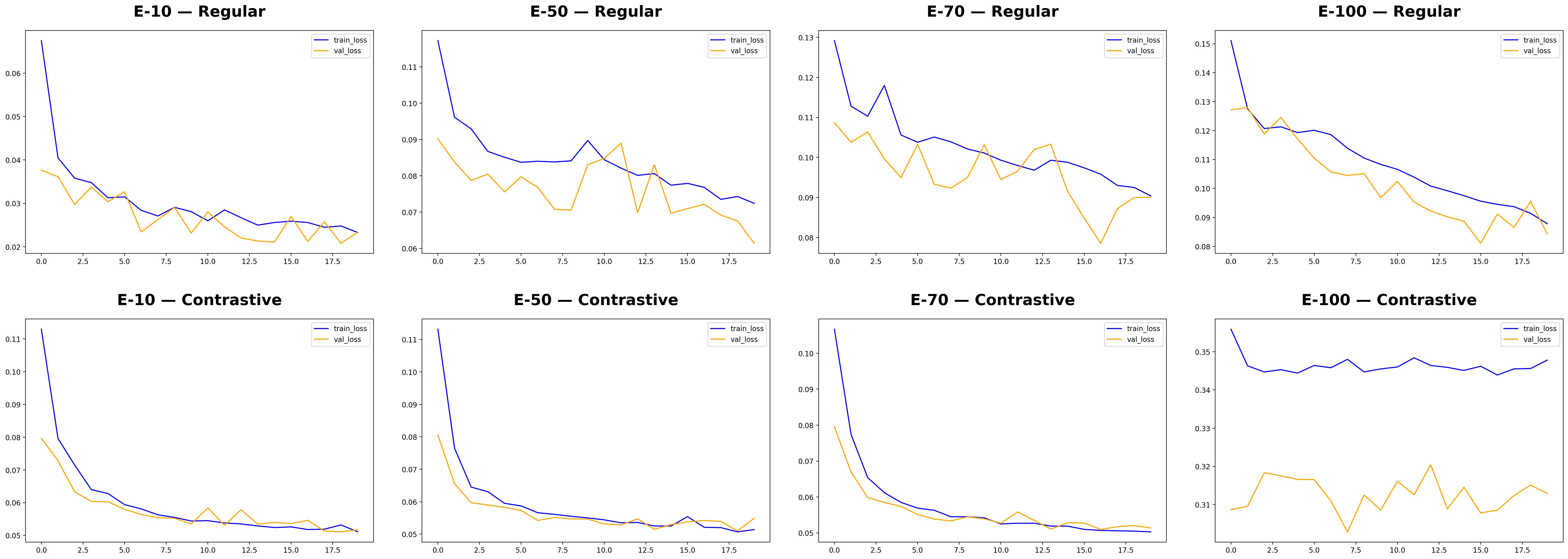

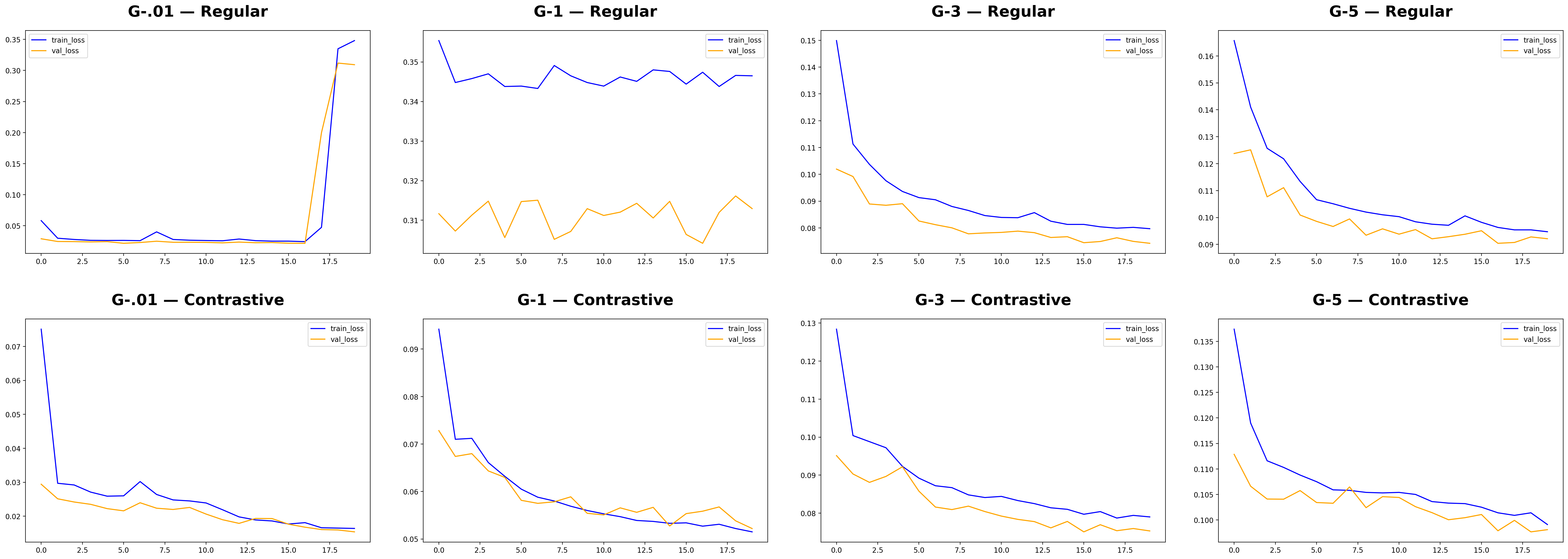

Our results demonstrate more consistent training with a lower final loss, compared to traditional denoising architectures. This validates our hypothesis that including the latent space information from the contrastive loss-based encoder improves the accuracy of the model when performing reconstruction. Moreover, the training procedure is much more stable when we first train w/ the contrastive loss.

To further validate our results that contrastive learning is useful in the learing process, we inspect the mean of the absolute values of the weights (MAW) in the convolutional layer at the bottleneck just before decoding. We compare the weights associated w/ the \(Enc_{REC}\) output and \(Enc_{CL}\) output. We note that the mean weights are pretty comparable, which indicates the model is using information from both encoders in the decoding process, across all noise augmentations.

Conclusion & Future Work

This research tackles the problem of voice isolation, i.e. extracting a clean audio signal from a noisy environment. We tested the novel thesis that combining the latent space representations from a contrastive-learning framework and from a traditional reconstruction framework allows for a more stable training procedure and more accurate final models. We prove this experimentally by demonstrating the effectiveness of our methodology on a variety of noise augmentations – Gaussian & Environmental – over a variety of different amplitudes.

However, there are still many future directions we hope to explore:

• Noise Generalizability: Can a model trained on extracting a clean signal from a certain type of noise generalize to other types of noise? Can a model trained with Gaussian noise generalize to Environmental noise? What if we mix in a variety of different noises during train-time?
• More Sophisticated Model Architectures: In this research, we used a standard U-Net to test our hypothesis as a simple proof of concept. But how well does this idea generalize to deeper models? Would this work for time-series models (e.g., RNN, LSTM, Transformer) that interact directly with the waveform without spectrograms?
• Different Training Procedures: Training the voice pipeline was a non-trivial task. We only tried the approach of fully training the CL encoder and then training the reconstruction-based encoder/decoder afterward. However, other procedures are possible. Alternating epochs between CL loss and reconstruction loss might be viable, or using a single encoder trained with a joint reconstruction–contrastive objective.
